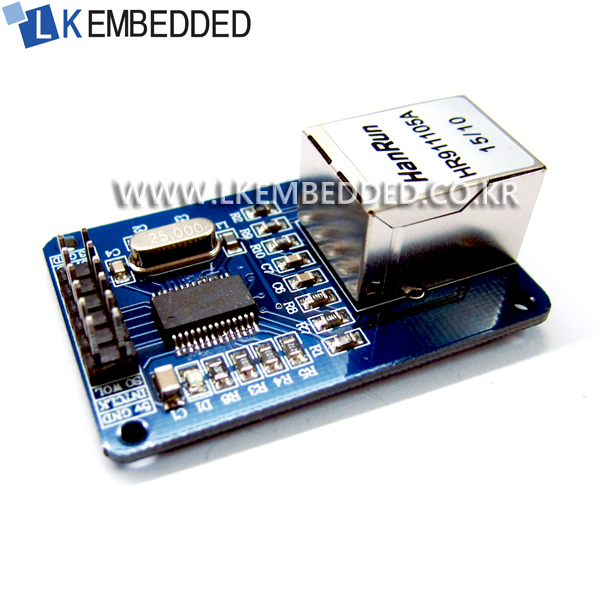

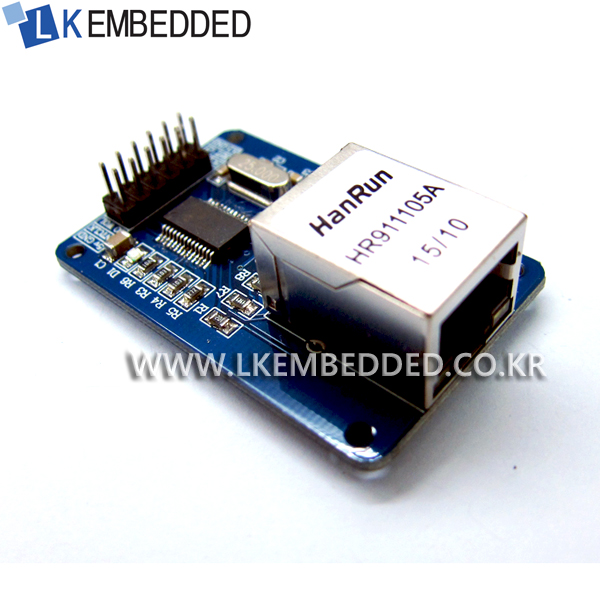

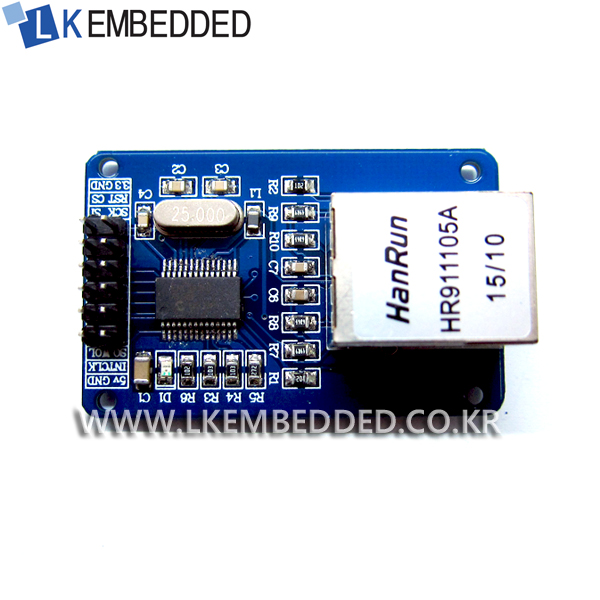

- 아두이노 이더넷 ENC28J60 SPI B90

- ENC28J60 이더넷 컨트롤러(10MB)와 -HR911105A 네트워크 인터페이스 포함

- LINK/STATUS 와 power LED 가 구성돼있어 직관적인 확인 가능

- AMS1117-3.3가 포함되어 있어, 3.3V 전압 입력과 외부 전압으로도 구동 가능

- 입력 전압 : 3.3V ~ 5V(최대 7V)

- 작동 전류 : 250mA

- 크리스탈 : 25Mhz

- Microchip사의 ENC28J60 이더넷 컨트롤러 기반 이더넷 통신 모듈

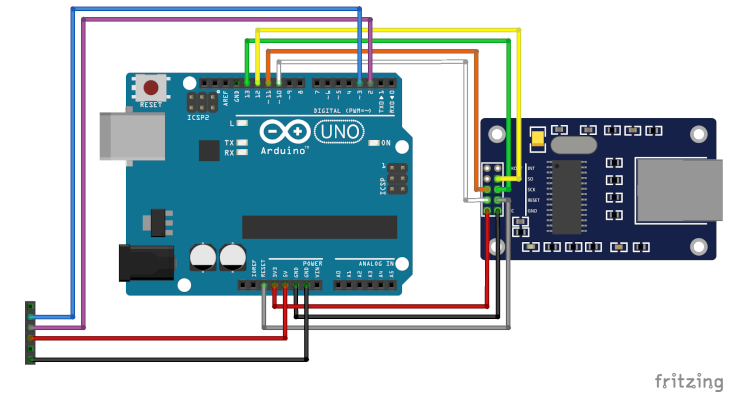

- SPI 인터페이스 방식으로 아두이노 및 다양한 MCU 보드와 연결 가능

- 10Base-T 이더넷(10Mbps) 지원

- RJ45 이더넷 포트 내장 (HanRun HR911105A)

- 25MHz 크리스탈 오실레이터 탑재로 안정적인 통신 클럭 제공

- TCP/IP 스택을 소프트웨어로 구현하여 유연한 네트워크 제어 가능

- 저전력 동작으로 임베디드 네트워크 프로젝트에 적합

- 아두이노 이더넷 통신, IoT 실습, 원격 제어·모니터링 프로젝트에 활용 가능

- PCB크기 : 50mm X 33mm X 18mm

- 아두이노 이더넷 ENC28J60 SPI B90 * 1pcs

#include
#include
#include

#include

uint8_t mac[6] = {
  0x00,0x01,0x02,0x03,0x04,0x05
};

EthernetServer server(23);
EthernetClient modemClient;
EthernetClient telnetClient;

#ifdef SoftwareSerial_h
SoftwareSerial SWSerial(2, 3); // RX, TX
#else
#define SWSerial Serial
#endif

#define DCD_PIN 4

unsigned long lastConnectCheck = 0;
unsigned long prevCharTime = 0;
unsigned long prevRingTime = 0;
uint8_t modemEscapeState = 0;
bool    modemCommandMode = true;


const PROGMEM uint8_t regDefaults[] = {2, '+',
                               3, '\r',
                               4, '\n',
                               5, 8,
                               6, 2,
                               7, 50,
                               8, 2,
                               9, 6,
                               10, 14,
                               11, 95,
                               12, 50,
                               25, 5,
                               38, 20};


const PROGMEM int linespeeds[] = {0, 75, 110, 300, 600, 1200, 2400, 4800, 7200, 9600, 12000, 14400};
#define NSPEEDS (sizeof(linespeeds)/sizeof(int))

#define REG_ESC            2
#define REG_CR             3
#define REG_LF             4
#define REG_BSP            5
#define REG_GUARDTIME     12
#define REG_TELNET        15
#define REG_LINESPEED     37
#define REG_CURLINESPEED  43
#define REG_WIFI_CHANNEL  99

#define RING_MILLIS       4500

enum
  {
    E_OK = 0,
    E_CONNECT,
    E_RING,
    E_NOCARRIER,
    E_ERROR,
    E_CONNECT1200,
    E_NODIALTONE,
    E_BUSY,
    E_NOANSWER,
    E_CONNECT600,
    E_CONNECT2400,
    E_CONNECT4800,
    E_CONNECT9600,
    E_CONNECT14400,
    E_CONNECT19200
  };


struct TelnetStateStruct
{
  uint8_t cmdLen;
  uint8_t cmd[4];
  bool sendBinary;
  bool receiveBinary;
  bool receivedCR;
  bool subnegotiation;
} modemTelnetState, clientTelnetState;


#define MAGICVAL 0xF0E1D2C3B4A59687

struct ModemDataStruct
{
  uint64_t magic;

  uint32_t baud;
  byte     bits;
  byte     parity;
  byte     stopbits;
  byte     silent;
  byte     unused;
  char     telnetTerminalType[32];

  uint8_t  reg[32];

  uint8_t  extCodes;
  uint8_t  echo;
  uint8_t  quiet;
  uint8_t  verbose;
} ModemData;


void applySWSerialSettings()
{
  SWSerial.flush();
  SWSerial.end();
  delay(100);
  SWSerial.begin(ModemData.baud);
}


void clearSWSerialBuffer()
{
  // empty the serial buffer
  delay(100);
  while( SWSerial.available()>0 ) { SWSerial.read(); delay(10); }
}


void setup()
{
  pinMode(DCD_PIN, OUTPUT);
  digitalWrite(DCD_PIN, LOW);

  EEPROM.get(0, ModemData);
  if( ModemData.magic != MAGICVAL )
    {
      // use default settings
      memset(&ModemData, 0, sizeof(ModemData));
      ModemData.magic    = MAGICVAL;
      ModemData.baud     = 9600;
      ModemData.bits     = 8;
      ModemData.parity   = 0;
      ModemData.stopbits = 1;
      ModemData.silent   = false;
      strcpy(ModemData.telnetTerminalType, PSTR("vt100"));
      for(int i=0; i1 ) {SWSerial.print('<'); SWSerial.print(b, HEX);}

      if( state.cmdLen==0 && b == T_IAC )
        state.cmdLen = 1;
      else if( state.cmdLen==1 && b == T_SE )
        {
          state.subnegotiation = false;
          state.cmdLen = 0;
        }
      else
        state.cmdLen = 0;

      return true;
    }

  // ---- handle CR-NUL sequences

  if( state.receivedCR )
    {
      state.receivedCR = false;
      if( b==0 )
        {
          // CR->NUL => CR (i.e. ignore the NUL)
          if( ModemData.reg[REG_TELNET]>1 ) SWSerial.print(F("<0d<00"));
          return true;
        }
    }
  else if( b == 0x0d && state.cmdLen==0 && !state.receiveBinary )
    {
      // received CR while not in binary mode => remember but pass through
      state.receivedCR = true;
      return false;
    }

  // ---- handle IAC sequences

  if( state.cmdLen==0 )
    {
      // waiting for IAC byte
      if( b == T_IAC )
        {
          state.cmdLen = 1;
          state.cmd[0] = T_IAC;
          if( ModemData.reg[REG_TELNET]>1 ) {SWSerial.print('<'); SWSerial.print(b, HEX);}
          return true;
        }
    }
  else if( state.cmdLen==1 )
    {
      if( ModemData.reg[REG_TELNET]>1 ) {SWSerial.print('<'); SWSerial.print(b, HEX);}
      // received second byte of IAC sequence
      if( b == T_IAC )
        {
          // IAC->IAC sequence means regular 0xff data value
          state.cmdLen = 0;

          // we already skipped the first IAC (0xff), so just return 'false' to pass this one through
          return false;
        }
      else if( b == T_NOP || b == T_BREAK || b == T_GOAHEAD )
        {
          // NOP, BREAK, GOAHEAD => do nothing and skip
          state.cmdLen = 0;
          return true;
        }
      else if( b == T_SB )
        {
          // start of sub-negotiation
          state.subnegotiation = true;
          state.cmdLen = 0;
          return true;
        }
      else
        {
          // record second byte of sequence
          state.cmdLen = 2;
          state.cmd[1] = b;
          return true;
        }
    }
  else if( state.cmdLen==2 )
    {
      // received third (i.e. last) byte of IAC sequence
      if( ModemData.reg[REG_TELNET]>1 ) {SWSerial.print('<'); SWSerial.print(b, HEX);}
      state.cmd[2] = b;

      bool reply = true;
      if( state.cmd[1] == T_WILL )
        {
          switch( state.cmd[2] )
            {
            case TO_SEND_BINARY:        state.cmd[1] = T_DO; state.receiveBinary = true; break;
            case TO_ECHO:               state.cmd[1] = T_DO; break;
            case TO_SUPPRESS_GO_AHEAD:  state.cmd[1] = T_DO; break;
            default: state.cmd[1] = T_DONT; break;
            }
        }
      else if( state.cmd[1] == T_WONT )
        {
          switch( state.cmd[2] )
            {
            case TO_SEND_BINARY: state.cmd[1] = T_DO; state.receiveBinary = false; break;
            }
          state.cmd[1] = T_DONT;
        }
      else if( state.cmd[1] == T_DO )
        {
          switch( state.cmd[2] )
            {
            case TO_SEND_BINARY:       state.cmd[1] = T_WILL; state.sendBinary = true; break;
            case TO_SUPPRESS_GO_AHEAD: state.cmd[1] = T_WILL; break;
            case TO_TERMINAL_TYPE:     state.cmd[1] = ModemData.telnetTerminalType[0]==0 ? T_WONT : T_WILL; break;
            default: state.cmd[1] = T_WONT; break;
            }
        }
      else if( state.cmd[1] == T_DONT )
        {
          switch( state.cmd[2] )
            {
            case TO_SEND_BINARY: state.cmd[1] = T_WILL; state.sendBinary = false; break;
            }
          state.cmd[1] = T_WONT;
        }
      else
        reply = false;

      // send reply if necessary
      if( reply )
        {
          if( ModemData.reg[REG_TELNET]>1 )
            for(int k=0; k<3; k++) {SWSerial.print('>'); SWSerial.print(state.cmd[k], HEX);}

          client.write(state.cmd, 3);

          if( state.cmd[1] == T_WILL && state.cmd[2] == TO_TERMINAL_TYPE )
            {
              // send terminal-type subnegoatiation sequence
              uint8_t buf[110], i, n=0;
              buf[n++] = T_IAC;
              buf[n++] = T_SB;
              buf[n++] = TO_TERMINAL_TYPE;
              buf[n++] = 0; // IS
              for(i=0; i<100 && ModemData.telnetTerminalType[i]>=32 && ModemData.telnetTerminalType[i]<127; i++)
                buf[n++] = ModemData.telnetTerminalType[i];
              buf[n++] = T_IAC;
              buf[n++] = T_SE;
              client.write(buf, n);
              if( ModemData.reg[REG_TELNET]>1 )
                for(int k=0; k'); SWSerial.print(buf[k], HEX);}
            }
        }

      // start over
      state.cmdLen = 0;
      return true;
    }
  else
    {
      // invalid state (should never happen) => just reset
      state.cmdLen = 0;
    }

  return false;
}


int strncmpi(const char *s1, const char *s2, size_t cchars)
{
  char c1, c2;

  if ( s1==s2 )
    return 0;

  if ( s1==0 )
    return -1;

  if ( s2==0 )
    return 1;

  if ( cchars==0 )
    return 0;

  do {
    c1 = toupper(*s1);
    c2 = toupper(*s2);
    s1++;
    s2++;
    cchars--;
  } while ( (c1 != 0) && (c1 == c2) && (cchars>0) );

  return (int)(c1 - c2);
}


int getConnectStatus()
{
  int res;

  if( ModemData.reg[REG_LINESPEED]==0 )
    {
      int i = 0;
      while( i32 )
        cmd[cmdLen++] = c;
      else if( cmdLen>0 && c == ModemData.reg[REG_BSP] )
        cmdLen--;

      if( ModemData.echo )
        {
          if( c == ModemData.reg[REG_BSP] )
            { SWSerial.print(char(8)); SWSerial.print(' '); SWSerial.print(char(8)); }
          else
            SWSerial.print(c);
        }

      prevCharTime = millis();
    }

  if( cmdLen==2 && toupper(cmd[0])=='A' && cmd[1]=='/' )
    {
      c = ModemData.reg[REG_CR];
      cmd[1] = 'T';
      cmdLen = prevCmdLen;
    }

  if( c == ModemData.reg[REG_CR] )
    {
      while( (millis()-prevCharTime)<100 )
        {
          if( SWSerial.available() )
            {
              SWSerial.read();
              break;
            }
        }

      prevCmdLen = cmdLen;
      if( cmdLen>=2 && toupper(cmd[0])=='A' && toupper(cmd[1])=='T' )
        {
          cmd[cmdLen]=0;
          int ptr = 2;
          bool connecting = false;
          int status = E_OK;
          while( status!=E_ERROR && ptr=0 )
            printModemResult(status);

          // delay 1 second after a "CONNECT" message
          if( connecting ) delay(1000);
        }
      else if( cmdLen>0 )
        printModemResult(E_ERROR);

      cmdLen = 0;
    }
}


void relayModemData()
{
  if( modemClient && modemClient.connected() && modemClient.available() )
    {
      int baud = ModemData.reg[REG_CURLINESPEED]==255 ? ModemData.baud : linespeeds[ModemData.reg[REG_CURLINESPEED]];

      if( baud == ModemData.baud )
        {
          // use full modem<->computer data rate
          unsigned long t = millis();
          while( modemClient.available() && millis()-t < 100 )
            {
              uint8_t b = modemClient.read();
              if( !handleTelnetProtocol(b, modemClient, modemTelnetState) ) SWSerial.write(b);
            }
        }
      else if( modemClient.available() )
        {
          // limit data rate
          static unsigned long nextChar = 0;
          if( millis()>=nextChar )
            {
              uint8_t b = modemClient.read();
              if( !handleTelnetProtocol(b, modemClient, modemTelnetState) )
                {
                  SWSerial.write(b);
                  nextChar = millis() + 10000/baud;
                }
            }
        }
    }

  if( millis() > prevCharTime + 20*ModemData.reg[REG_GUARDTIME] )
    {
      if( modemEscapeState==0 )
        modemEscapeState = 1;
      else if( modemEscapeState==4 )
        {
          // received [1 second pause] +++ [1 second pause]
          // => switch to command mode
          modemCommandMode = true;
          printModemResult(E_OK);
        }
    }

  if( SWSerial.available() )
    {
      uint8_t buf[128];
      int n = 0, millisPerChar = 1000 / (ModemData.baud / (1+ModemData.bits+ModemData.stopbits)) + 1;
      unsigned long startTime = millis();

      if( millisPerChar<5 ) millisPerChar = 5;
      while( SWSerial.available() && n0 && buf[n-1] == 0x0d && b != 0x0a ) buf[n++] = 0;
            }

          buf[n++] = b;
          prevCharTime = millis();

          if( modemEscapeState>=1 && modemEscapeState<=3 && b==ModemData.reg[REG_ESC] )
            modemEscapeState++;
          else
            modemEscapeState=0;

          // wait a short time to see if another character is coming in so we
          // can send multi-character (escape) sequences in the same packet
          // some BBSs don't recognize the sequence if there is too much delay
          while( !SWSerial.available() && millis()-prevCharTime < millisPerChar );
        }

      // if not sending in binary mode then a stand-alone CR (without LF) must be followd by NUL
      if( ModemData.reg[REG_TELNET] && !modemTelnetState.sendBinary && buf[n-1] == 0x0d && !SWSerial.available() ) buf[n++] = 0;

      modemClient.write(buf, n);
    }
}


void relayTelnetData()
{
  if (telnetClient.available())
    {
      //get data from the telnet client and push it to the UART
      unsigned long t = millis();
      while(telnetClient.available() && millis()-t < 100)
        {
          uint8_t b = telnetClient.read();
          if( !handleTelnetProtocol(b, telnetClient, clientTelnetState) ) SWSerial.write(b);
        }
    }

  if( millis() > prevCharTime + 20*ModemData.reg[REG_GUARDTIME] )
    {
      if( modemEscapeState==0 )
        modemEscapeState = 1;
      else if( modemEscapeState==4 )
        {
          // received [1 second pause] +++ [1 second pause]
          // => switch to command mode
          modemCommandMode = true;
          printModemResult(E_OK);
        }
    }

  //check UART for data
  if( SWSerial.available() )
    {
      uint8_t buf[128];
      int n = 0, millisPerChar = 1000 / (ModemData.baud / (1+ModemData.bits+ModemData.stopbits))+1;
      unsigned long t, startTime = millis();

      if( millisPerChar<5 ) millisPerChar = 5;
      while( SWSerial.available() && n=1 && modemEscapeState<=3 && b==ModemData.reg[REG_ESC] )
            modemEscapeState++;
          else
            modemEscapeState=0;

          // wait a short time to see if another character is coming in so we
          // can send multi-character (escape) sequences in the same packet
          t = millis();
          while( !SWSerial.available() && millis()-t < millisPerChar );
        }

      // push UART data to all connected telnet clients
      if( !ModemData.reg[REG_TELNET] || clientTelnetState.sendBinary )
        telnetClient.write(buf, n);
      else
        {
          // if sending in telnet non-binary mode then a stand-alone CR (without LF) must be followd by NUL
          uint8_t buf2[sizeof(buf)*2];
          int j, m = 0;
          for(j=0; j=n-1 || buf[j+1]!=0x0a) ) buf2[m++] = 0;
            }
          telnetClient.write(buf2, m);
        }
    }
}


void loop()
{
  if( modemClient && modemClient.connected() )
    {
      // modem is connected. if telnet server has new client then reject
      if( server.available() ) server.available().stop();

      // only relay data if not in command mode
      if( !modemCommandMode ) relayModemData();
    }
  else if( telnetClient && telnetClient.connected() )
    {
      // modem is connected. if telnet server has new client then reject
      if( server.available() && server.available() != telnetClient ) server.available().stop();

      // only relay data if not in command mode
      if( !modemCommandMode ) relayTelnetData();
    }
  else
    {
      // check whether connection to modem client was lost
      if( !modemCommandMode )
        {
          if( modemClient ) modemClient.stop();
          if( telnetClient ) telnetClient.stop();

          digitalWrite(DCD_PIN, LOW);

          modemCommandMode = true;
          ModemData.reg[REG_CURLINESPEED] = 0;
          printModemResult(E_NOCARRIER);
        }

      // check if there are any new telnet clients
      if( server.available() )
        {
          if( millis()-prevRingTime > RING_MILLIS )
            {
              if( ModemData.reg[1] >= 10 )
                {
                  // failsafe, after 10 rings we are not going to answer...
                  server.available().stop();
                  prevRingTime = 0;
                  ModemData.reg[1] = 0;
                }
              else
                {
                  printModemResult(E_RING);
                  prevRingTime = millis();
                  ModemData.reg[1]++;
                }
            }

          if( ModemData.reg[0] != 0 && ModemData.reg[1] >= ModemData.reg[0] )
            {
              // force at least 1 second before responding
              delay(1000);

              telnetClient = server.accept();
              int i = getConnectStatus();
              printModemResult(i);
              digitalWrite(DCD_PIN, HIGH);

              resetTelnetState(clientTelnetState);
              modemEscapeState=0;
              modemCommandMode = false;
            }
        }
      else
        {
          prevRingTime = 0;
          ModemData.reg[1] = 0;
        }
    }

  if( modemCommandMode )
    {
      handleModemCommand();
    }
}
